Description
Sleek form, remarkable function
Raspberry Pi 500+ puts the power of Raspberry Pi 5’s quad-core 64-bit Arm processor and RP1 I/O controller into an ergonomic and tactile mechanical keyboard, combining uncompromising performance with 16GB RAM and 256GB NVMe storage for a truly premium desktop computer experience.

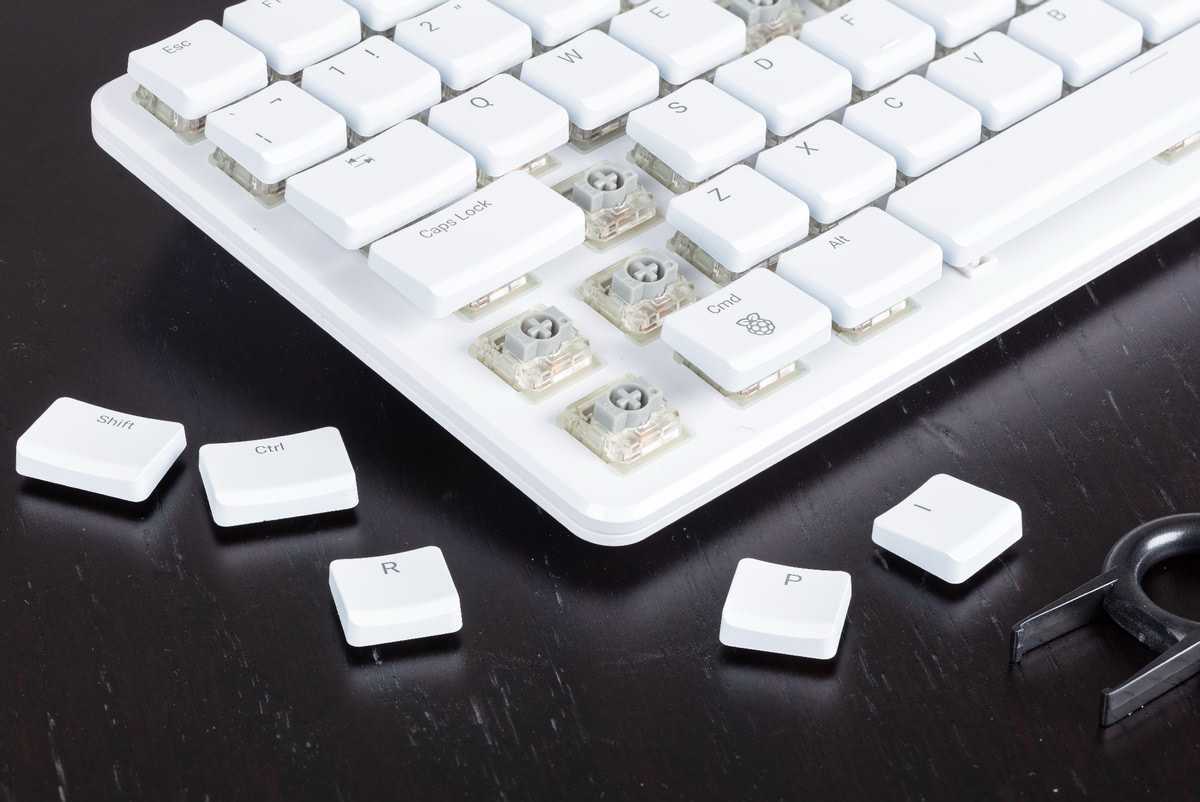

Get clicky with it
Raspberry Pi 500+ comes equipped with Gateron KS-33 Blue low-profile switches, which have long travel times and quick actuation for a comfortable and smooth typing experience. Want a more custom look? A keycap puller is included so that you can change the default keys.

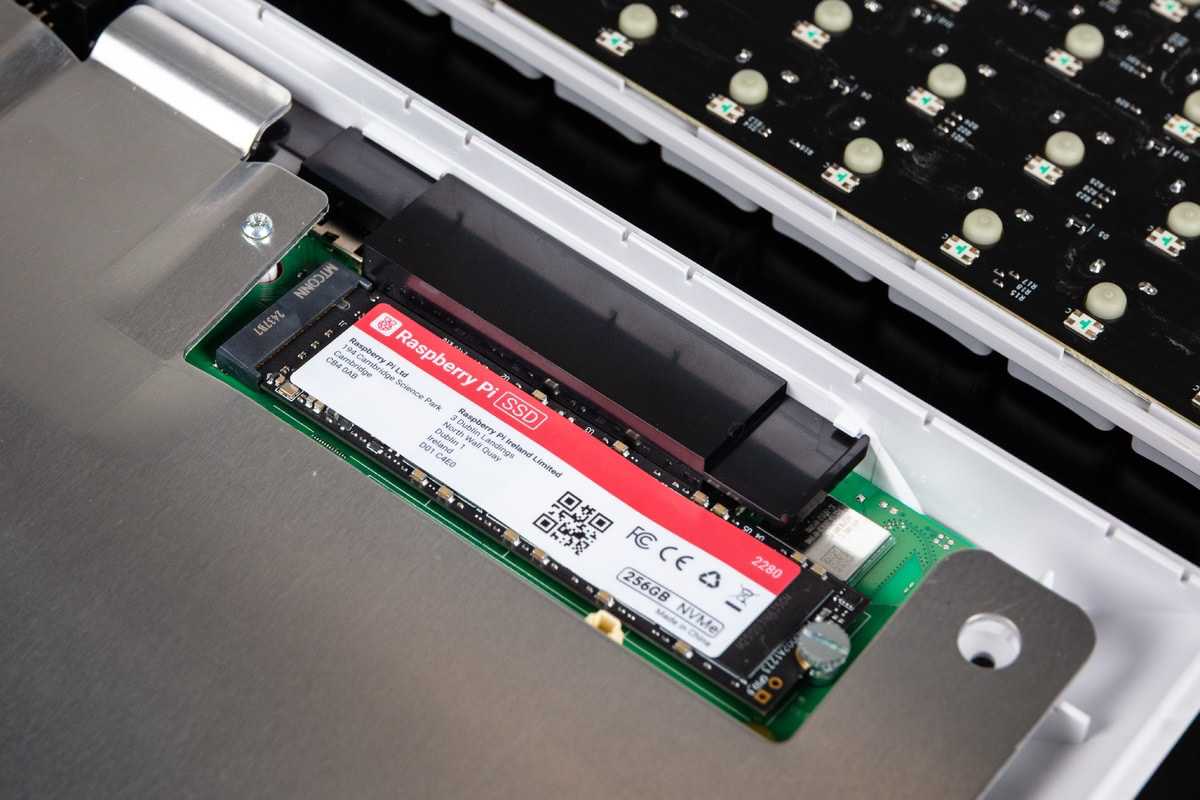

Enjoy the drive
Raspberry Pi 500+ is fitted with a 256GB Raspberry Pi SSD for super-fast boot times and quick, reliable data transfer. Using the included tool to open the case, you can swap the SSD to increase storage capacity.

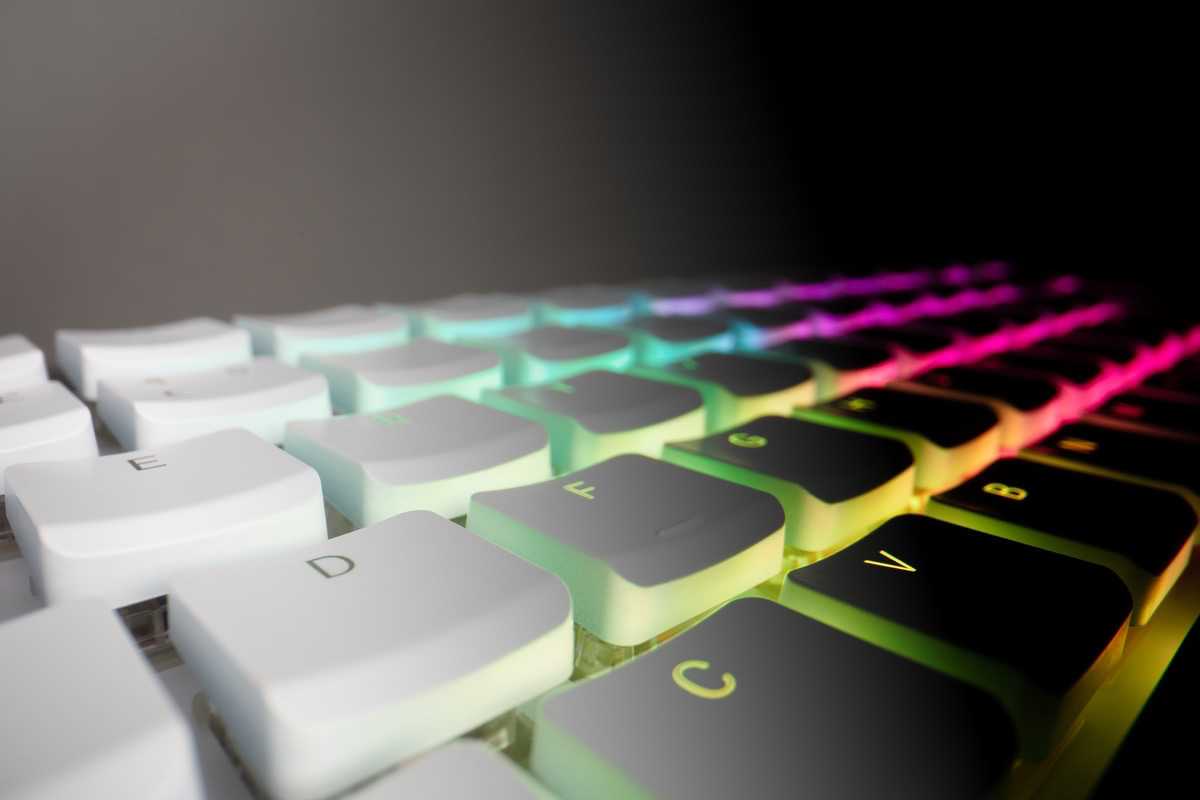

The light’s fantastic
Raspberry Pi 500+ features bright, crisp LEDs set beneath the mechanical switches. Cycle through the preset patterns or individually program the LEDs for a truly custom look.
Specification
2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache
16GB LPDDR4X-4267 SDRAM
Internal 256GB Raspberry Pi SSD
Support for M.2 NVMe SSDs up to 2280 form factor
84-, 85- or 88-key mechanical keyboard (depending on regional variant)
Gateron KS-33 Blue low-profile switches
Dual-band (2.4GHz and 5.0GHz) IEEE 802.11b/g/n/ac Wi-Fi®
Bluetooth 5.0, BLE
Gigabit Ethernet
2 × USB 3.0 port and 1 × USB 2.0 port
Horizontal 40-pin GPIO header
2 × micro HDMI® port (supports up to 4Kp60)
H.265 (4Kp60 decode)
OpenGL ES 3.1 graphics, Vulkan 1.3
SD card support: microSD card slot for operating system and data storage
Power: 5V DC via USB-C connector
Documents
Compliance
Raspberry Pi 500+ has undergone extensive compliance testing and meets a number of regional and international standards.
View and download relevant certificates and conformity documents.
If you require any further information regarding compliance, please contact us at compliance@raspberrypi.com.
The Adopted Trademarks HDMI®, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
